Visualizing Your Mesh

This task shows you how to visualize different aspects of your Istio mesh.

As part of this task, you install the Kiali addon and use the web-based graphical user interface to view service graphs of the mesh and your Istio configuration objects.

This task uses the Bookinfo sample application as the example throughout. This task assumes the Bookinfo application is installed in the bookinfo namespace.

Before you begin

Follow the Kiali installation documentation to deploy Kiali into your cluster.

Generating a graph

1. To verify the service is running in your cluster, run the following command:

   $ kubectl -n istio-system get svc kiali


2. To determine the Bookinfo URL, follow the instructions to determine the Bookinfo ingress GATEWAY_URL.

3. To send traffic to the mesh, you have three options

   • Visit http://$GATEWAY_URL/productpage in your web browser

   • Use the following command multiple times:

     $ curl http://$GATEWAY_URL/productpage


   • If you installed the watch command in your system, send requests continually with:

     $ watch -n 1 curl -o /dev/null -s -w %{http_code} $GATEWAY_URL/productpage


4. To open the Kiali UI, execute the following command in your Kubernetes environment:

   $ istioctl dashboard kiali


5. View the overview of your mesh in the Overview page that appears immediately after you log in. The Overview page displays all the namespaces that have services in your mesh. The following screenshot shows a similar page:



6. To view a namespace graph, Select the Graph option in the kebab menu of the Bookinfo overview card. The kebab menu is at the top right of card and looks like 3 vertical dots. Click it to see the available options. The page looks similar to:



7. The graph represents traffic flowing through the service mesh for a period of time. It is generated using Istio telemetry.

8. To view a summary of metrics, select any node or edge in the graph to display its metric details in the summary details panel on the right.

9. To view your service mesh using different graph types, select a graph type from the Graph Type drop down menu. There are several graph types to choose from: App, Versioned App, Workload, Service.

   • The App graph type aggregates all versions of an app into a single graph node. The following example shows a single reviews node representing the three versions of the reviews app. Note that the Show Service Nodes Display option has been disabled.



   • The Versioned App graph type shows a node for each version of an app, but all versions of a particular app are grouped together. The following example shows the reviews group box that contains the three nodes that represents the three versions of the reviews app.



   • The Workload graph type shows a node for each workload in your service mesh. This graph type does not require you to use the app and version labels so if you opt to not use those labels on your components, this may be your graph type of choice.



   • The Service graph type shows a high-level aggregation of service traffic in your mesh.



Examining Istio configuration

1. The left menu options lead to list views for Applications, Workloads, Services and Istio Config. The following screenshot shows Services information for the Bookinfo namespace:



Traffic Shifting

You can use the Kiali traffic shifting wizard to define the specific percentage of request traffic to route to two or more workloads.

1. View the Versioned app graph of the bookinfo graph.

   • Make sure you have enabled the Traffic Distribution Edge Label Display option to see the percentage of traffic routed to each workload.

   • Make sure you have enabled the Show Service Nodes Display option to view the service nodes in the graph.



2. Focus on the ratings service within the bookinfo graph by clicking on the ratings service (triangle) node. Notice the ratings service traffic is evenly distributed to the two ratings workloads v1 and v2 (50% of requests are routed to each workload).



3. Click the ratings link found in the side panel to go to the detail view for the ratings service. This could also be done by secondary-click on the ratings service node, and selecting Details from the context menu.

4. From the Actions drop down menu, select Traffic Shifting to access the traffic shifting wizard.



5. Drag the sliders to specify the percentage of traffic to route to each workload. For ratings-v1, set it to 10%; for ratings-v2 set it to 90%.



6. Click the Preview button to view the YAML that will be generated by the wizard.



7. Click the Create button and confirm to apply the new traffic settings.

8. Click Graph in the left hand navigation bar to return to the bookinfo graph. Notice that the ratings service node is now badged with the virtual service icon.

9. Send requests to the bookinfo application. For example, to send one request per second, you can execute this command if you have watch installed on your system:

   $ watch -n 1 curl -o /dev/null -s -w %{http_code} $GATEWAY_URL/productpage


10. After a few minutes you will notice that the traffic percentage will reflect the new traffic route, thus confirming the fact that your new traffic route is successfully routing 90% of all traffic requests to ratings-v2.



Validating Istio configuration

Kiali can validate your Istio resources to ensure they follow proper conventions and semantics. Any problems detected in the configuration of your Istio resources can be flagged as errors or warnings depending on the severity of the incorrect configuration. See the Kiali validations page for the list of all validation checks Kiali performs.

Force an invalid configuration of a service port name to see how Kiali reports a validation error.

1. Change the port name of the details service from http to foo:

   $ kubectl patch service details -n bookinfo --type json -p '[{"op":"replace","path":"/spec/ports/0/name", "value":"foo"}]'


2. Navigate to the Services list by clicking Services on the left hand navigation bar.

3. Select bookinfo from the Namespace drop down menu if it is not already selected.

4. Notice the error icon displayed in the Configuration column of the details row.



5. Click the details link in the Name column to navigate to the service details view.

6. Hover over the error icon to display a tool tip describing the error.



7. Change the port name back to http to correct the configuration and return bookinfo back to its normal state.

   $ kubectl patch service details -n bookinfo --type json -p '[{"op":"replace","path":"/spec/ports/0/name", "value":"http"}]'




Viewing and editing Istio configuration YAML

Kiali provides a YAML editor for viewing and editing Istio configuration resources. The YAML editor will also provide validation messages when it detects incorrect configurations.

1. Introduce an error in the bookinfo VirtualService

   $ kubectl patch vs bookinfo -n bookinfo --type json -p '[{"op":"replace","path":"/spec/gateways/0", "value":"bookinfo-gateway-invalid"}]'

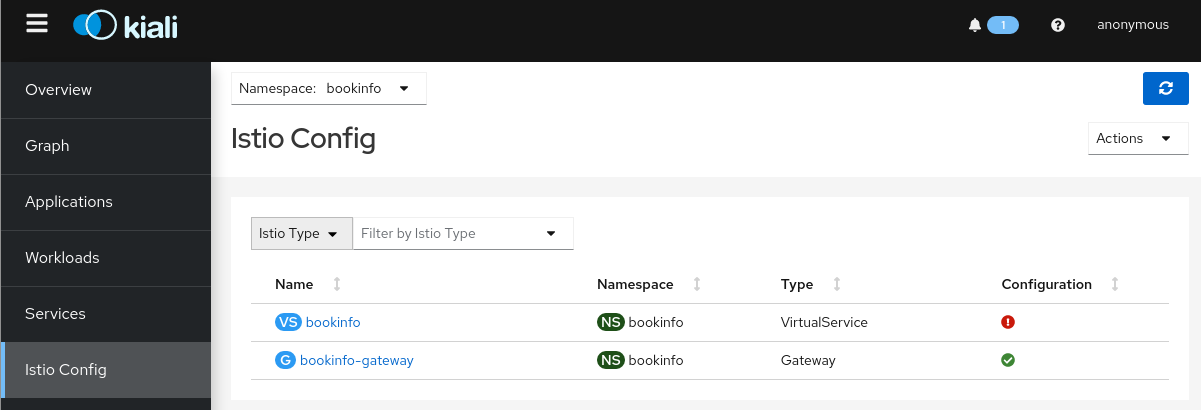

2. Click Istio Config on the left hand navigation bar to navigate to the Istio configuration list.

3. Select bookinfo from the Namespace drop down menu if it is not already selected.

4. Notice the error icon that alerts you to a configuration problem.



5. Click the error icon in the Configuration column of the bookinfo row to navigate to the bookinfo virtual service view.

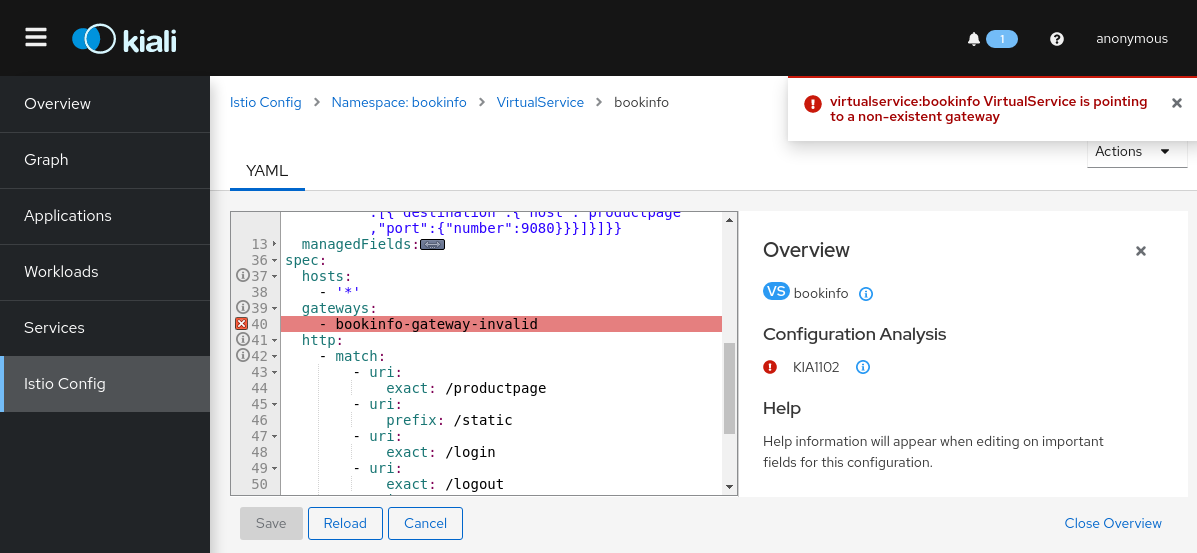

6. The YAML tab is preselected. Notice the color highlights and icons on the rows that have validation check notifications associated with them.



7. Hover over the red icon to view the tool tip message that informs you of the validation check that triggered the error. For more details on the cause of the error and how to resolve it, look up the validation error message on the Kiali Validations page.



8. Reset the virtual service bookinfo back to its original state.

   $ kubectl patch vs bookinfo -n bookinfo --type json -p '[{"op":"replace","path":"/spec/gateways/0", "value":"bookinfo-gateway"}]'


Additional Features

Kiali has many more features than reviewed in this task, such as an integration with Jaeger tracing.

For more details on these additional features, see the Kiali documentation.

For a deeper exploration of Kiali it is recommended to run through the Kiali Tutorial.

Cleanup

If you are not planning any follow-up tasks, remove the Bookinfo sample application and Kiali from your cluster.

1. To remove the Bookinfo application, refer to the Bookinfo cleanup instructions.

2. To remove Kiali from a Kubernetes environment:

   $ kubectl delete -f https://raw.githubusercontent.com/istio/istio/master/samples/addons/kiali.yaml
